8-320561-1 | AMP

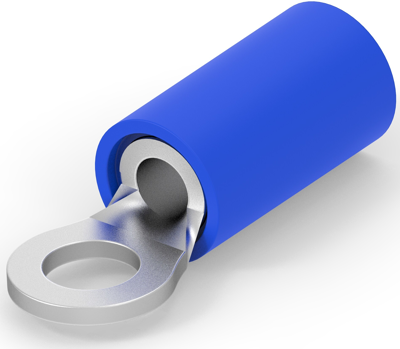

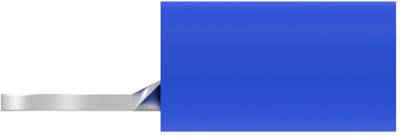

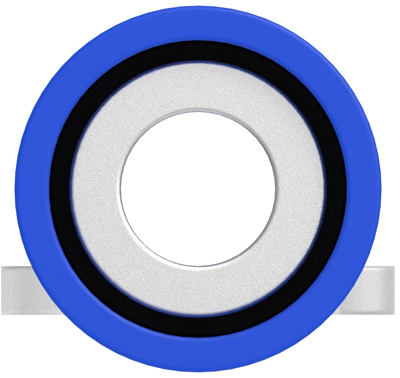

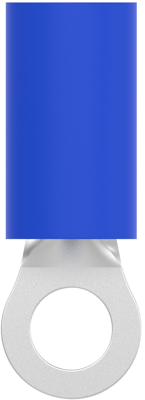

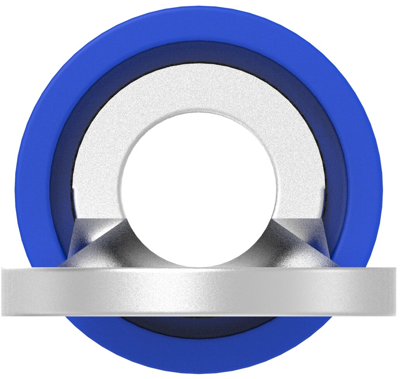

Insulated ring cable lug, 1.25-2 mm², AWG 16 to 14, 3.68 mm, M3.5, blue, 8-320561-1
Unit Price (€ / pc.)
1.2614 € *
Available in 5 Days: 900 pcs. - if ordered today
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
1.1662 €
25 pcs.
1.0948 €
50 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 8-320561-1, AMP
Ring terminal, Ring tongue, 16-14 AWG Wire size, 1.25-2 mm² Wire size, 2050-5180 CMA Wire size, Stud size #6/M3.5.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 3.68 mm | |
| Colour | blue | |
| shrinkable tubing | Yes | |
| Thread size | M3.5 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 1.25-2 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
