8-320553-1 | AMP

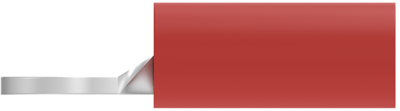

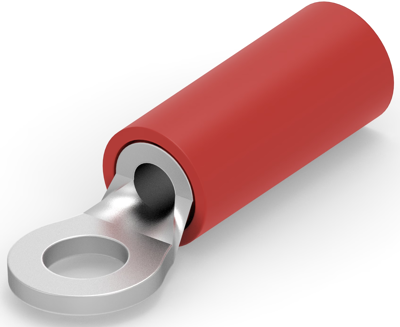

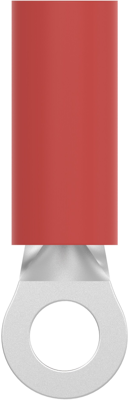

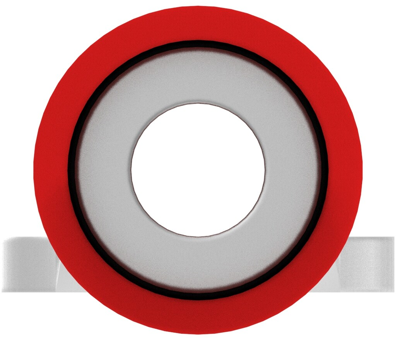

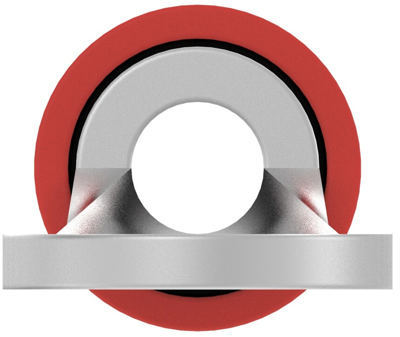

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.02 mm, M2.5, red, 8-320553-1
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: 37 Weeks
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5946 €
25 pcs.
1.4875 €
50 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 8-320553-1, AMP
Ring terminal, Ring tongue, 22-16 AWG Wire size, 0.3-1.42 mm² Wire size, 509-3260 CMA Wire size, Stud size M2.5/#4.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 16 | |
| Hole diameter | 3.02 mm | |
| Colour | red | |
| shrinkable tubing | Yes | |
| Thread size | M2.5 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
