8-165049-2 | AMP

Insulated crimp wire pins, 3.0-6.0 mm², AWG 12 to 10, 2.6 mm, yellow, 8-165049-2

Order No.: 39P3858
EAN: 4099889596564
MPN:
8-165049-2

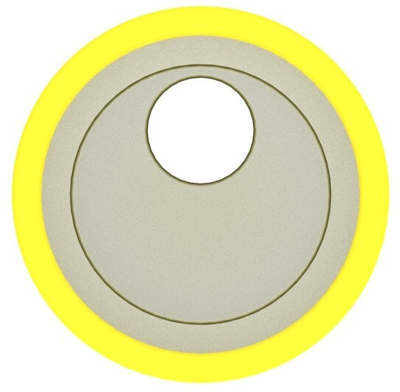

8-165049-2 AMP Cable Lugs Image 1

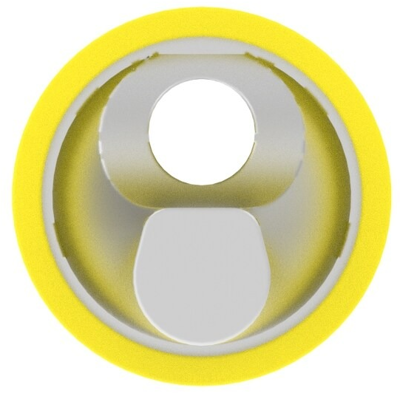

8-165049-2 AMP Cable Lugs Image 2

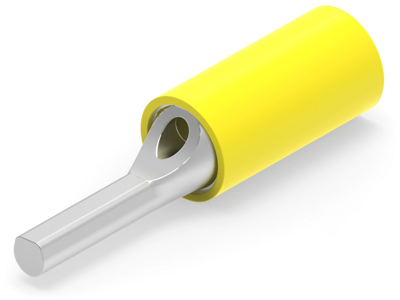

8-165049-2 AMP Cable Lugs Image 3

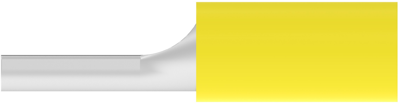

8-165049-2 AMP Cable Lugs Image 4

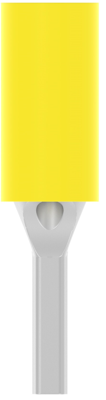

8-165049-2 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
6.2832 € *
Available in 5 Days: 825 pcs. - if ordered today
Total Price:
6.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.2832 €

Crimp Wire Pins, Tabs and Ferrules, 8-165049-2, AMP

Shape Description: WIRE PIN-003, Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Insulation Color: Yellow, Crimp Wire Pin, Tab & Ferrule Plating Material: Copper,Tin, Terminal Length: 10 mm, Terminal & Splice Type: Pin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Wire Pin, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 2.6 mm, Pin Type: Formed, Bullet Terminal: Without, Wire Insulation Support: With, DIN Wire Size: 2.5 – 6 mm², Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 6.3 mm, Accepts Wire Insulation Diameter Range: 3.8 – 6.3 mm, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 50, Crimp Wire Pin, Tab & Ferrule Packaging Method: Box, Barrel Color: Yellow

Technical specifications
Filter Property Value
Version crimp wire pins
max. operating temperature 105 °C
Colour yellow
Cable cross-section 3.0-6.0 mm²
AWG cross-section AWG 12 to 10
Material copper, tin-plated
Pin diameter 2.6 mm
Isolated Yes
Material Insulation nylon
Logistics
Property Value
Country of origin US
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
