8-1377173-9 | AMP
Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, 5 mm, red, 8-1377173-9
Unit Price (€ / pc.)
0.9877 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
197.54 € *
Price list
Quantity
Price per unit*
200 pcs.
0.9877 €
500 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale

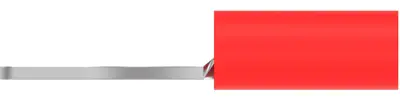

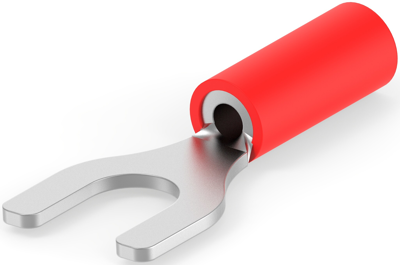

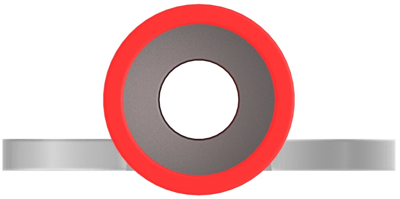

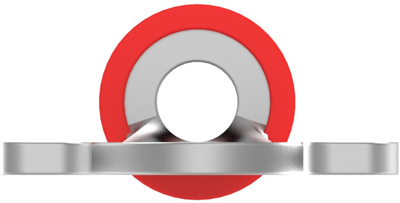

Spade cable lug, 8-1377173-9, AMP
Spade terminal, Spade tongue, 22-16 AWG Wire size, 0.3-1.42 mm² Wire size, 509-3260 CMA Wire size, Stud size #10.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 16 | |
| Hole diameter | 5 mm | |
| Colour | red | |
| shrinkable tubing | Yes | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | copper, tin-plated | |
| Version | forked cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
