726346 | AMP

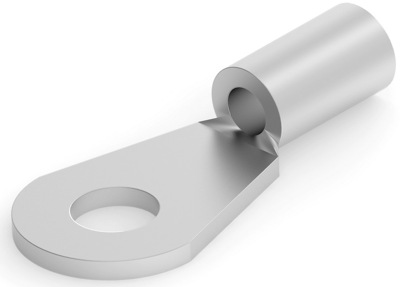

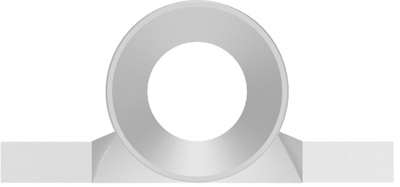

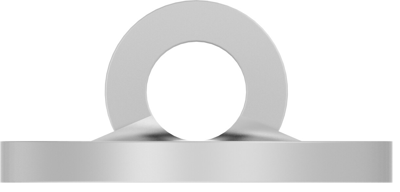

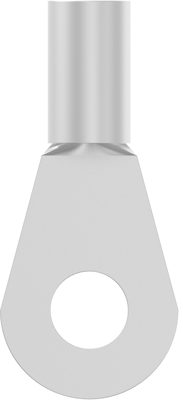

Uninsulated ring cable lug, 34-35 mm², 6.5 mm, M6, 726346
Order No.: 39P8520
EAN: 4099889601817
MPN:
726346
Unit Price (€ / pc.)
14.9226 € *
Available in 5 Days: 577 pcs. - if ordered today
Total Price:
14.92 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9226 €
10 pcs.
13.8516 €
25 pcs.
12.9353 €
50 pcs.
11.7572 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 726346, AMP
Shape Description: RING-101, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 34 – 35 mm², Stud Diameter: 6.5 mm, Tongue Thickness: .79 mm, Ring & Spade Overall Length: 26 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 250, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 34-35 mm² | |
| max. operating temperature | 170 °C | |
| Isolated | No | |
| Hole diameter | 6.5 mm | |
| Material | copper, tin-plated | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
