696722-1 | AMP

Uninsulated ring cable lug, 10.5-16.8 mm², AWG 8, 4.34 mm, M4, 696722-1

Order No.: 72P0915
EAN: 4099891605070
MPN:
696722-1

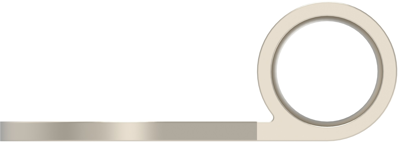

696722-1 AMP Cable Lugs Image 1

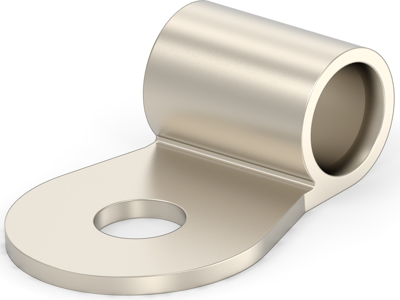

696722-1 AMP Cable Lugs Image 2

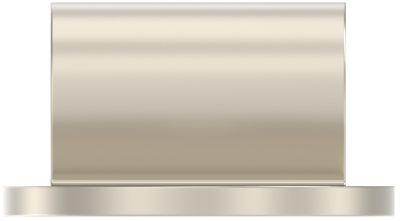

696722-1 AMP Cable Lugs Image 3

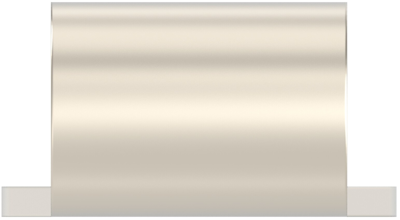

696722-1 AMP Cable Lugs Image 4

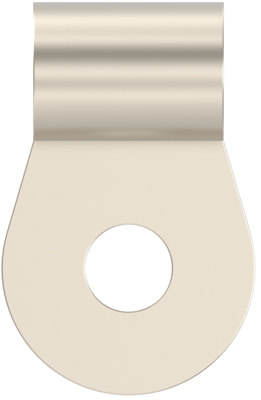

696722-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
7.5208 € *
Available in 5 Days: 4,073 pcs. - if ordered today
Total Price:
225.62 € *
Price list
Quantity
Price per unit*
30 pcs.
7.5208 €
65 pcs.
7.3542 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 696722-1, AMP

Ring terminal, Ring tongue, 8 AWG Wire size, 10.5 - 16.8 mm² Wire size, 13100 - 20800 CMA Wire size, Stud size #8 / M4.

Technical specifications
Isolated No
AWG cross-section AWG 8
Hole diameter 4.34 mm
Cable cross-section 10.5-16.8 mm²
Version ring cable lug
Material copper, nickel-plated
max. operating temperature 343 °C
shrinkable tubing No
Thread size M4
Logistics
Country of origin US
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
