696424-7 | AMP
Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 6.73 mm, M6, natural, 696424-7
Unit Price (€ / pc.)
1.5827 € *
Available in 5 Days: 2,053 pcs. - if ordered today
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
10 pcs.
1.4637 €
25 pcs.
1.3685 €
50 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale

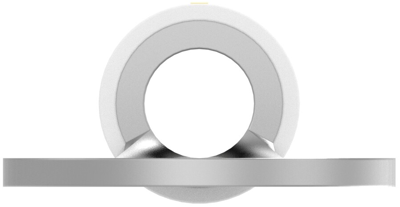

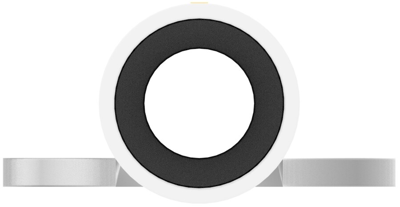

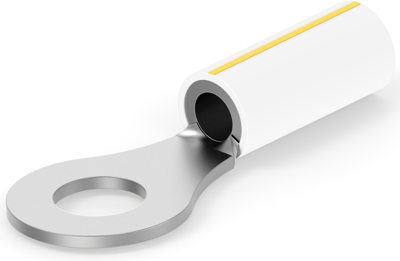

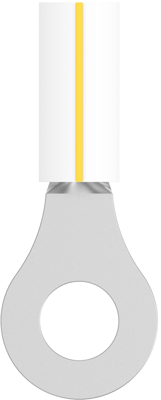

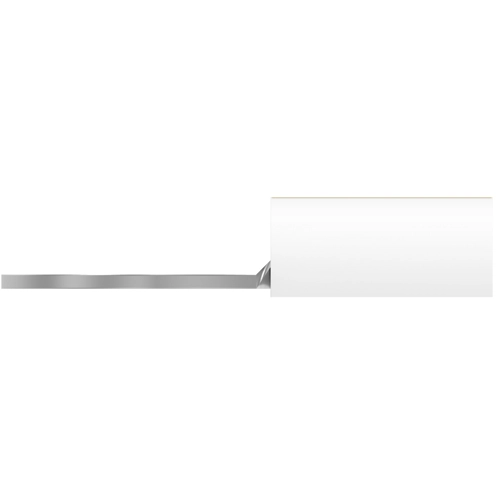

Ring cable lug, 696424-7, AMP
Ring terminal, Ring tongue, 12-10 AWG Wire size, 2.62-6.64 mm² Wire size, 6654-12066 CMA Wire size, Stud size M6/1/4.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 6.73 mm | |
| Colour | natural | |
| shrinkable tubing | No | |
| Thread size | M6 | |
| Material Insulation | PVDF | |
| max. operating temperature | 150 °C | |
| Cable cross-section | 2.62-6.64 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
