696423-3 | AMP
Insulated ring cable lug, 1.04-2.64 mm², AWG 16 to 14, 0.145 mm, M3.5, natural, 696423-3
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 40 Weeks

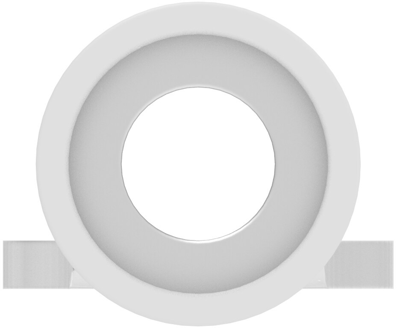

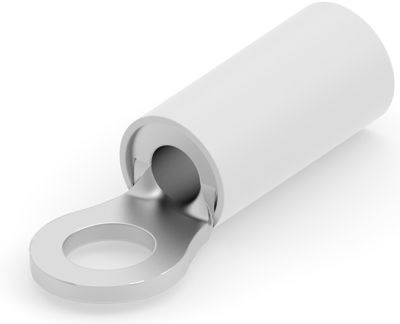

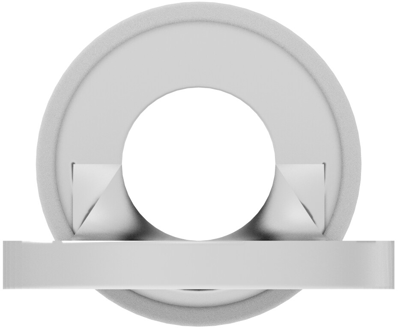

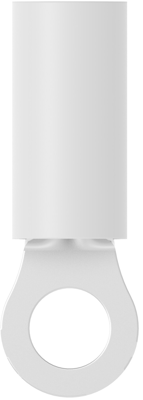

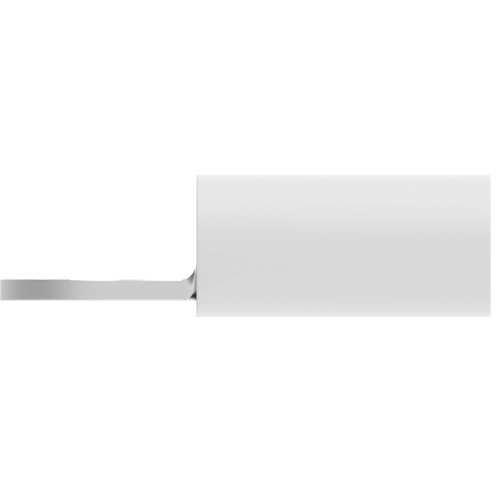

Ring cable lug, 696423-3, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.64 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: , Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 150 °C | |
| Colour | natural | |
| Cable cross-section | 1.04-2.64 mm² | |
| AWG cross-section | AWG 16 to 14 | |
| Material | copper, tin-plated | |
| Hole diameter | 0.145 mm | |
| Isolated | Yes | |
| Material Insulation | PVDF | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
