696422-6 | AMP

Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 0.19 mm, natural, 696422-6

Order No.: 39P3796
EAN: 4099889596083
MPN:
696422-6
Series: PIDG

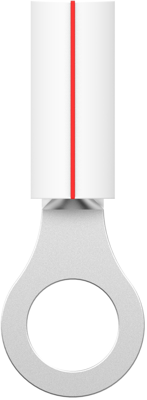

696422-6 AMP Cable Lugs Image 1

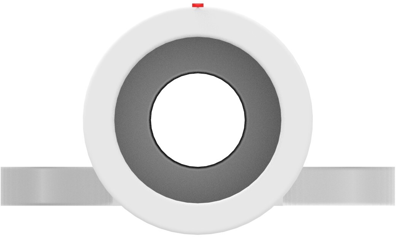

696422-6 AMP Cable Lugs Image 2

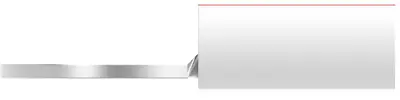

696422-6 AMP Cable Lugs Image 3

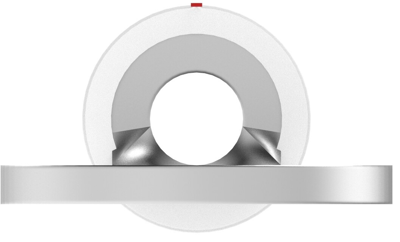

696422-6 AMP Cable Lugs Image 4
696422-6 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 10,600 pcs. - if ordered today
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7616 €
10 pcs.
0.7021 €
25 pcs.
0.6545 €
50 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 696422-6, AMP

Terminal Features: Sheared, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Natural, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: , Insulation Requirement: Partially Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Comment: Marking: Commercial 22-16- Military 22-18 in accordance with MIL-T-7928.

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 22 to 16
Version ring cable lug
Isolated Yes
Cable cross-section 0.26-1.65 mm²
Colour natural
Hole diameter 0.19 mm
Material Insulation PVDF
max. operating temperature 150 °C
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
