696420-2 | AMP

Name: Insulated ring cable lug, 0.12-0.24 mm², AWG 26 to 24, 3.022 mm, natural, 696420-2
Brand: AMP
SKU: 72P0905
Availability: InStock

Insulated ring cable lug, 0.12-0.24 mm², AWG 26 to 24, 3.022 mm, natural, 696420-2

Order No.: 72P0905

EAN: 4099891604998

MPN:

696420-2

Series: PIDG

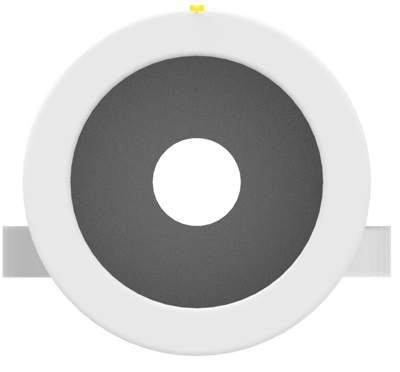

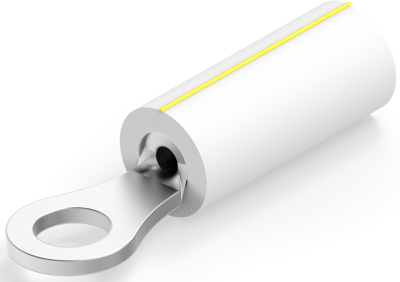

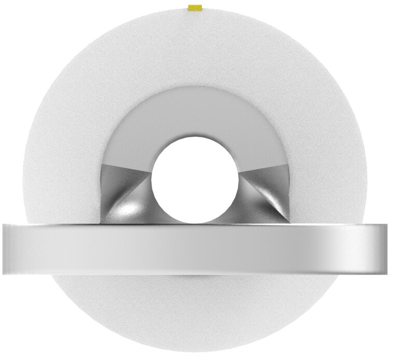

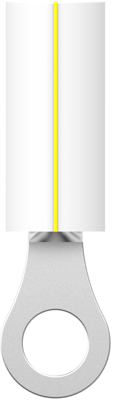

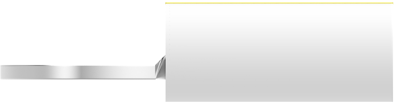

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 0.12-0.24 mm²

AWG cross-section AWG 26 to 24

Isolated Yes

Colour natural

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.3328 € *

Available in 5 Days: 2,690 pcs. - if ordered today

Total Price:

199.92 € *

Price list

Quantity

Price per unit*

150 pcs.

1.3328 €

350 pcs.

1.3090 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Ring cable lug, 696420-2, AMP

Ring terminal, Ring tongue, 26-24 AWG Wire size, 0.12-.24 mm² Wire size, 202-509 CMA Wire size, Stud size #4.

Technical specifications

Filter	Property	Value
	Version	ring cable lug
	max. operating temperature	150 °C
	Colour	natural
	shrinkable tubing	No
	Cable cross-section	0.12-0.24 mm²
	AWG cross-section	AWG 26 to 24
	Material	copper, tin-plated
	Hole diameter	3.022 mm
	Isolated	Yes
	Material Insulation	PVDF
