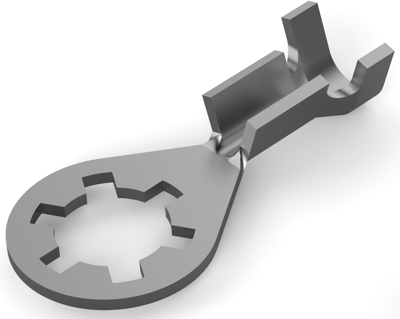

640271-3 | AMP
Uninsulated ring cable lug, 0.3-0.8 mm², AWG 22 to 18, 5 mm, metal
Order No.: 35P2340
EAN: 4099889589412
MPN:
640271-3
Unit Price (€ / pc.)
0.1238 € *
Available: 0 pcs.
Available in 5 Days: 60,000 pcs.
Leadtime: 1 Week **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
7500 pcs.
0.1238 €
15000 pcs.
0.1095 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 640271-3, AMP
Shape Description: Anti-Rotational/Grounding, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .619 g, Ring & Spade Plating Material: Tin, Contact Base Material: Steel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 22 – 18 AWG, Wire Size: .3 – .8 mm², Wire Size: 640 – 1624 CMA, Stud Diameter: 5 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 7500, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 18 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 0.3-0.8 mm² | |
| Hole diameter | 5 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
