640051-1 | AMP

Uninsulated ring cable lug, 0.8-2 mm², AWG 18 to 14, 4.4 mm, M4, 640051-1

Order No.: 72P0610
EAN: 4099891604974
MPN:
640051-1

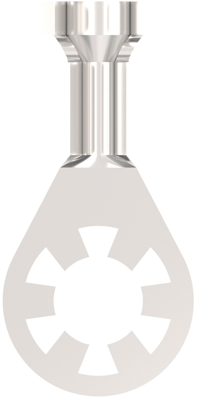

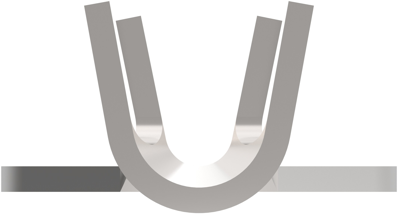

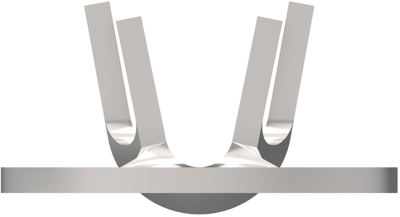

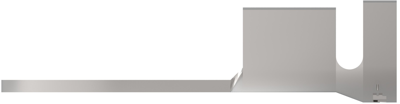

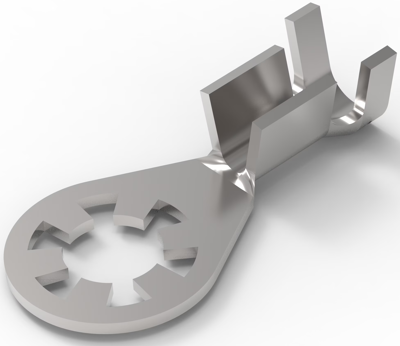

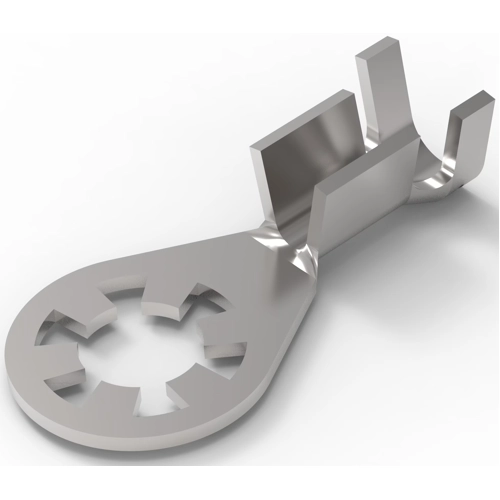

640051-1 AMP Cable Lugs Image 1
640051-1 AMP Cable Lugs Image 2
640051-1 AMP Cable Lugs Image 3
640051-1 AMP Cable Lugs Image 4
640051-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1095 € *
Available in 5 Days: 84,000 pcs. - if ordered today
Total Price:
656.88 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.1095 €
12000 pcs.
0.1035 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 640051-1, AMP

Ring terminal, Ring tongue, 18 - 14 AWG Wire size, 0.8 - 2 mm² Wire size, 1624 - 4106 CMA Wire size, Stud size M4 / #8.

Technical specifications
Isolated No
AWG cross-section AWG 18 to 14
Hole diameter 4.4 mm
Cable cross-section 0.8-2 mm²
Version ring cable lug
Material stainless steel
max. operating temperature 110 °C
shrinkable tubing No
Thread size M4
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
