63797-1 | AMP

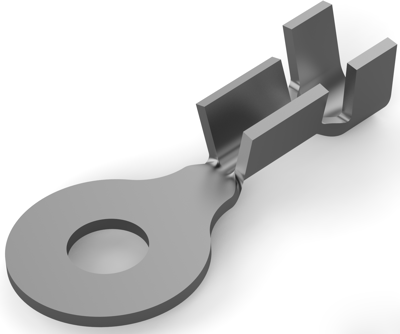

Uninsulated ring cable lug, 0.3-0.9 mm², AWG 22 to 18, 2.84 mm, M2.5, metal, 63797-1
Order No.: 35P2339
EAN: 4099889589405
MPN:
63797-1
Unit Price (€ / pc.)
0.0916 € *
Standard delivery time from the manufacturer is: 31 Weeks
Cable lug, 63797-1, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 22 – 18 AWG, Wire Size: .3 – .9 mm², Wire Size: 640 – 1624 CMA, Stud Diameter: 2.84 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 10000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 2.84 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 0.3-0.9 mm² | |
| Version | ring cable lug | |
| Material | tin | |
| AWG cross-section | AWG 22 to 18 | |
| Thread size | M2.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
