63698-1 | AMP
Uninsulated ring cable lug, 1.3-3.0 mm², AWG 16 to 12, 4.39 mm, M4, metal, 63698-1
Order No.: 35P2307
EAN: 4099889589139
MPN:
63698-1
Unit Price (€ / pc.)
0.0976 € *
Available in 5 Days: 180,000 pcs. - if ordered today
Total Price:
585.48 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.0976 €
12000 pcs.
0.0916 €
*incl. VAT plus shipping costs
Subject to prior sale

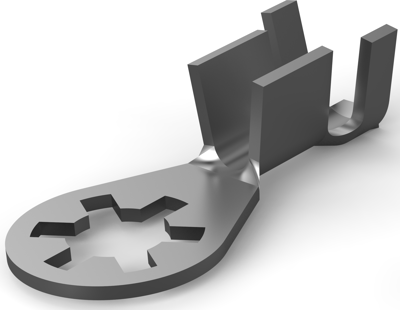

Ring cable lug, 63698-1, AMP
Shape Description: Anti-Rotational/Grounding, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 16 – 12 AWG, Wire Size: 1.3 – 3 mm², Wire Size: 2582 – 6529 CMA, Stud Diameter: 4.39 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 6000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 4.39 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 1.3-3.0 mm² | |
| Version | ring cable lug | |
| Material | tin | |
| AWG cross-section | AWG 16 to 12 | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
