63610-2 | AMP
Uninsulated forked cable lug, 2.0-6.0 mm², AWG 14 to 10, 4.82 mm
Order No.: 35P2513
EAN: 4099889590593
MPN:
63610-2
Unit Price (€ / pc.)
0.1190 € *
Available: 0 pcs.
Available in 5 Days: 104,000 pcs.
Leadtime: 1 Week **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
8000 pcs.
0.1190 €
16000 pcs.
0.1107 €
*incl. VAT plus shipping costs
**Subject to prior sale

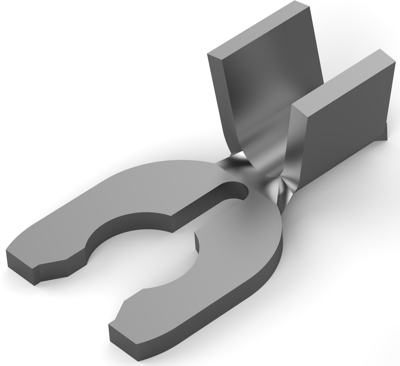

Fork cable lug, 63610-2, AMP
Shape Description: Spring Spade, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: Without, Wire Size: 14 – 10 AWG, Wire Size: 2 – 6 mm², Wire Size: 4106 – 10382 CMA, Stud Diameter: 4.82 mm, Tongue Thickness: 1.02 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 8000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 14 to 10 | |
| Isolated | No | |
| Cable cross-section | 2.0-6.0 mm² | |
| Hole diameter | 4.82 mm | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
