626037-2 | AMP

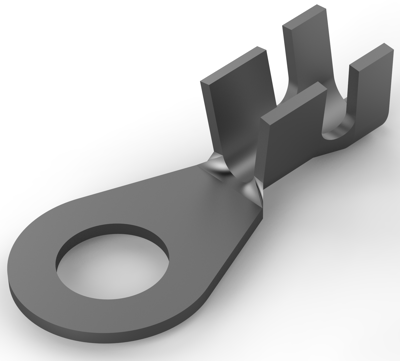

Uninsulated ring cable lug, 4.0-6.0 mm², AWG 11 to 10, 6.5 mm, metal, 626037-2
Order No.: 35P2444
EAN: 4099889590142
MPN:
626037-2
Unit Price (€ / pc.)
0.3332 € *
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
1,332.80 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.3332 €
8000 pcs.
0.3035 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 626037-2, AMP
Shape Description: RING-001, Ring & Spade Stud Size: 1/4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.598 g, Ring & Spade Plating Material: Brass,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 11 – 10 AWG, Wire Size: 4 – 6 mm², Wire Size: 8233 – 10382 CMA, Stud Diameter: 6.5 mm, Tongue Thickness: .8 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 4000, Ring & Spade Packaging Method: Strip/Reel, Comment: Similar to DIN 46225.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 4.0-6.0 mm² | |
| max. operating temperature | 105 °C | |
| Isolated | No | |
| Hole diameter | 6.5 mm | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 11 to 10 | |
| Colour | metal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
