626036-2 | AMP

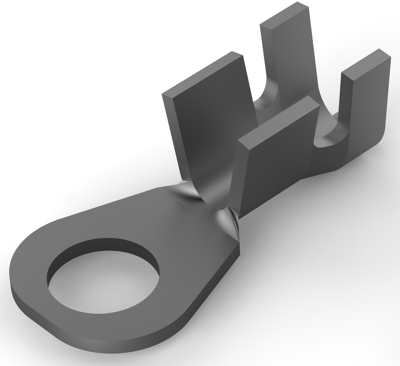

Uninsulated ring cable lug, 4.0-6.0 mm², AWG 11 to 10, 5.3 mm, metal, 626036-2
Order No.: 35P2443
EAN: 4099889590135
MPN:
626036-2
Unit Price (€ / pc.)
0.1714 € *
Standard delivery time from the manufacturer is: 25 Weeks
Cable lug, 626036-2, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.205 g, Ring & Spade Plating Material: Brass,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 11 – 10 AWG, Wire Size: 4 – 6 mm², Wire Size: 8233 – 10382 CMA, Stud Diameter: 5.3 mm, Tongue Thickness: .8 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Strip/Reel, Comment: Similar to DIN 46225.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 5.3 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 4.0-6.0 mm² | |
| Version | ring cable lug | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 11 to 10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
