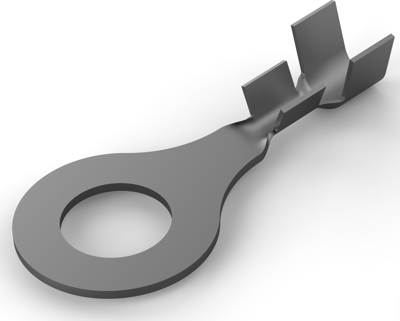

626030-2 | AMP
Uninsulated ring cable lug, 0.5-1.65 mm², AWG 20 to 15, 6.5 mm
Order No.: 35P2422
EAN: 4099889590029
MPN:
626030-2
Unit Price (€ / pc.)
0.2499 € *
Available: 0 pcs.
Available in 5 Days: 45,000 pcs.
Leadtime: 1 Week **
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.2499 €
10000 pcs.
0.2321 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 626030-2, AMP
Shape Description: RING-001, Ring & Spade Stud Size: 1/4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.026 g, Ring & Spade Plating Material: Brass,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 20 – 15 AWG, Wire Size: .5 – 1.65 mm², Wire Size: 1021 – 3256 CMA, Stud Diameter: 6.5 mm, Tongue Thickness: .6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Strip/Reel, Comment: Similar to DIN 46225.
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 20 to 15 | |
| Isolated | No | |
| Cable cross-section | 0.5-1.65 mm² | |
| Hole diameter | 6.5 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
