61904-1 | AMP

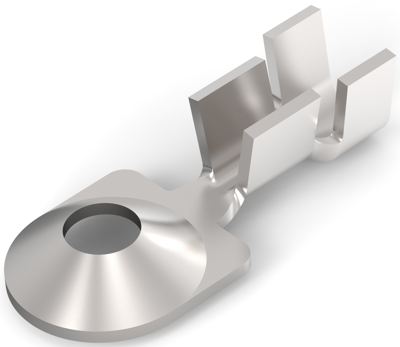

Uninsulated ring cable lug, 0.5-1.3 mm², AWG 20 to 16, 2.64 mm, M3, metal, 61904-1
Order No.: 35P2309
EAN: 4099889589146
MPN:
61904-1
Unit Price (€ / pc.)
0.1249 € *
Standard delivery time from the manufacturer is: 9 Weeks
Cable lug, 61904-1, AMP
Shape Description: Anti-Rotational/Grounding, Ring & Spade Stud Size: M3, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Stainless Steel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 20 – 16 AWG, Wire Size: .5 – 1.3 mm², Wire Size: 1021 – 2582 CMA, Stud Diameter: 2.64 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 12500, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 2.64 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 0.5-1.3 mm² | |
| Version | ring cable lug | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 20 to 16 | |
| Thread size | M3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
