61867-2 | AMP

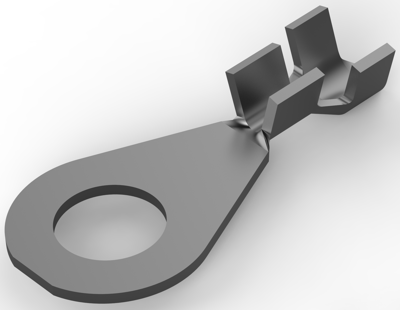

Uninsulated ring cable lug, 0.8-2.0 mm², AWG 18 to 14, 6.73 mm, metal, 61867-2
Order No.: 35P2353
EAN: 4099889589535
MPN:
61867-2
Unit Price (€ / pc.)
0.2868 € *
Available: 0 pcs.
Available in 5 Days: 7,500 pcs.
Leadtime: 27 Weeks **
Total Price:
716.98 € *
Price list
Quantity
Price per unit*
2500 pcs.
0.2868 €
5000 pcs.
0.2725 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 61867-2, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: 1/4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 18 – 14 AWG, Wire Size: .8 – 2 mm², Wire Size: 1624 – 4106 CMA, Stud Diameter: 6.73 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Colour | metal | |
| Isolated | No | |
| AWG cross-section | AWG 18 to 14 | |
| Hole diameter | 6.73 mm | |
| Cable cross-section | 0.8-2.0 mm² | |
| Version | ring cable lug | |
| Material | tin | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
