61764-1 | AMP

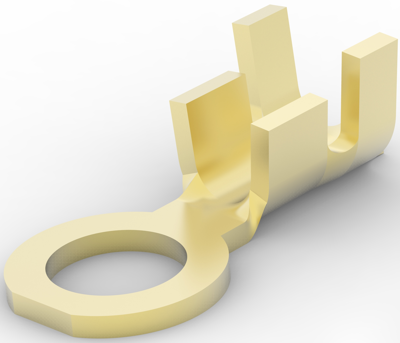

Uninsulated ring cable lug, 0.5-1.4 mm², AWG 20 to 16, 3.51 mm, M3.5, 61764-1
Order No.: 35P2355
EAN: 4099889589559
MPN:
61764-1
Unit Price (€ / pc.)
0.0583 € *
Available in 5 Days: 80,000 pcs. - if ordered today
Cable lug, 61764-1, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Unplated, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 20 – 16 AWG, Wire Size: .5 – 1.4 mm², Wire Size: 1021 – 2582 CMA, Stud Diameter: 3.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 20000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Hole diameter | 3.51 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 0.5-1.4 mm² | |
| Version | ring cable lug | |
| Material | brass | |
| AWG cross-section | AWG 20 to 16 | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
