61436-1 | AMP

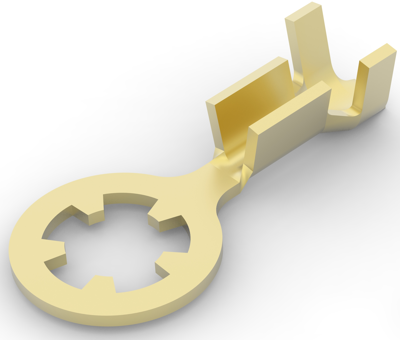

Uninsulated ring cable lug, 0.3-1.31 mm², AWG 22 to 16, 4.5 mm, M4, 61436-1
Order No.: 35P2335
EAN: 4099889589368
MPN:
61436-1
Unit Price (€ / pc.)
0.0726 € *
Standard delivery time from the manufacturer is: 19 Weeks
Cable lug, 61436-1, AMP
Shape Description: Anti-Rotational/Grounding, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Unplated, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.31 mm², Wire Size: 642 – 2582 CMA, Stud Diameter: 4.5 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 7000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Isolated | No | |
| AWG cross-section | AWG 22 to 16 | |
| Hole diameter | 4.5 mm | |
| Cable cross-section | 0.3-1.31 mm² | |
| Version | ring cable lug | |
| max. operating temperature | 110 °C | |
| Thread size | M4 |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
