60625-1 | AMP

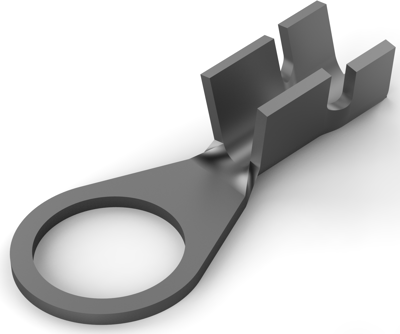

Uninsulated ring cable lug, 0.823-2.08 mm², AWG 18 to 14, 6.73 mm, M6, metal, 60625-1
Order No.: 35P2348
EAN: 4099889589481
MPN:
60625-1
Unit Price (€ / pc.)
0.0821 € *
Standard delivery time from the manufacturer is: 27 Weeks
Ring cable lug, 60625-1, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 18 – 14 AWG, Wire Size: 0.823 – 2.08 mm², Wire Size: 1624 – 4106 CMA, Stud Diameter: 6.73 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 11000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 6.73 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 0.823-2.08 mm² | |
| Version | ring cable lug | |
| Material | tin | |
| AWG cross-section | AWG 18 to 14 | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
