60320-2 | AMP

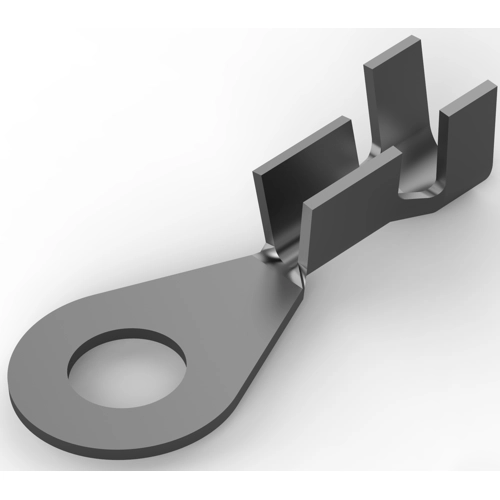

Uninsulated ring cable lug, 0.823-2.08 mm², AWG 18 to 14, 4.17 mm, M4, 60320-2
Unit Price (€ / pc.)
0.1035 € *
Standard delivery time from the manufacturer is: 33 Weeks
Cable lug, 60320-2, AMP
Shape Description: RING-028, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Brass, Wire Insulation Support: With, Wire Size: 18 – 14 AWG, Wire Size: .823 – 2.08 mm², Wire Size: 1624 – 4109 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .5 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 10000, Ring & Spade Packaging Method: Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Hole diameter | 4.17 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.823-2.08 mm² | |
| Version | ring cable lug | |
| Material | tin | |
| AWG cross-section | AWG 18 to 14 | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
