60123-2 | AMP

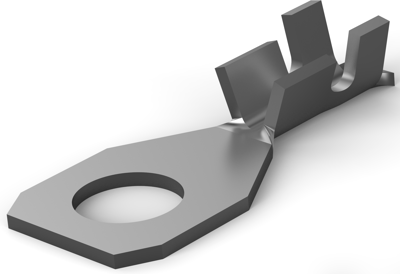

Uninsulated ring cable lug, 0.13-0.5 mm², AWG 26 to 20, 3.6 mm, M3.5, metal, 60123-2
Order No.: 35P2405
EAN: 4099889589900
MPN:
60123-2
Unit Price (€ / pc.)
0.0916 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
2,199.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
24000 pcs.
0.0916 €
Cable lug, 60123-2, AMP
Shape Description: Flat Sided, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 26 – 20 AWG, Wire Size: .13 – .5 mm², Wire Size: 254 – 1021 CMA, Stud Diameter: 3.6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 12000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | Ringkabelschuh | |
| AWG cross-section | AWG 26 bis 20 | |
| Colour | metall | |
| Thread size | M3,5 | |
| Isolated | No | |
| Cable cross-section | 0,13-0,5 mm² | |
| Hole diameter | 3.6 mm | |
| Material | Zinn | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
