55850-1 | AMP
Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 3.51 mm, M3.5, blue, 55850-1
Order No.: 71P9960
EAN: 4099891604837
MPN:
55850-1
Unit Price (€ / pc.)
2.1420 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1420 €
10 pcs.
1.9873 €
25 pcs.
1.8445 €
50 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale

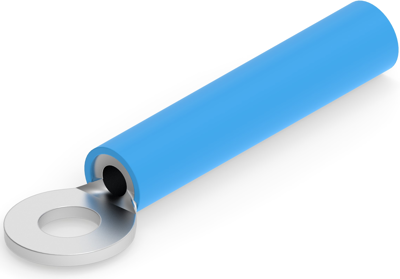

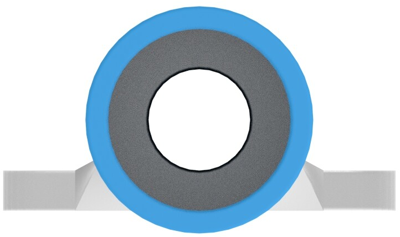

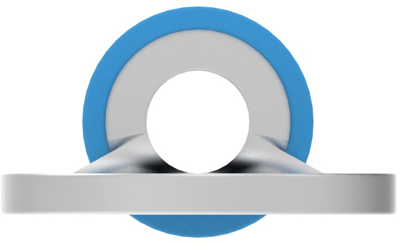

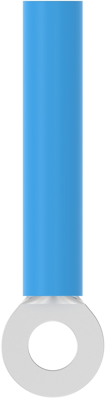

Ring cable lug, 55850-1, AMP
Ring terminal & Spade terminal, Ring tongue, 16 - 14 AWG Wire size, 1.04 - 2.62 mm² Wire size, 2050 - 5180 CMA Wire size, Stud size #6 / M3.5.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 16 to 14 | |
| shrinkable tubing | Yes | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 1.04-2.62 mm² | |
| Colour | blue | |
| Hole diameter | 3.51 mm | |
| Material Insulation | PO | |
| max. operating temperature | 125 °C | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
