55679-1 | AMP

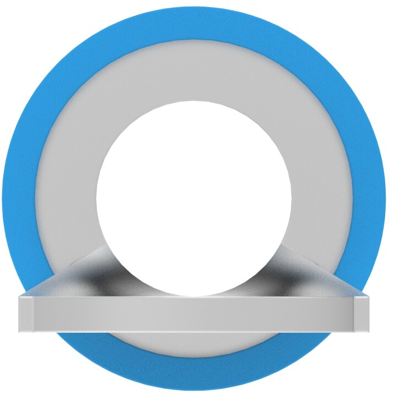

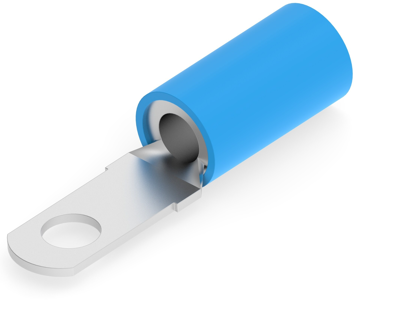

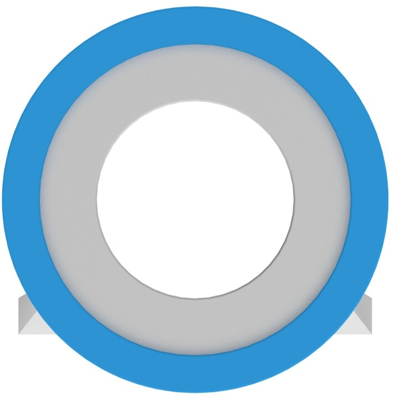

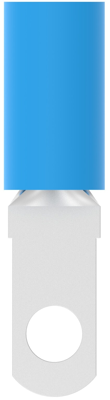

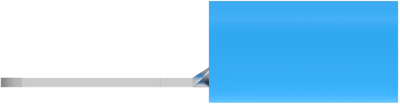

Insulated ring cable lug, 10.54-16.77 mm², AWG 6, 6.73 mm, M6, blue, 55679-1
Unit Price (€ / pc.)
0.6069 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Ring cable lug, 55679-1, AMP
Shape Description: RING-057, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 6 AWG, Wire Size: 10.54 – 16.77 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 1.14 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Colour | blue | |
| Isolated | Yes | |
| AWG cross-section | AWG 6 | |
| Hole diameter | 6.73 mm | |
| Cable cross-section | 10.54-16.77 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Material Insulation | PVC | |
| Thread size | M6 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369040 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
