55678-1 | AMP

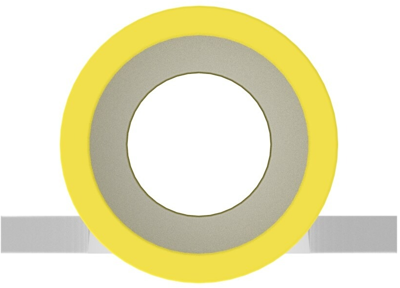

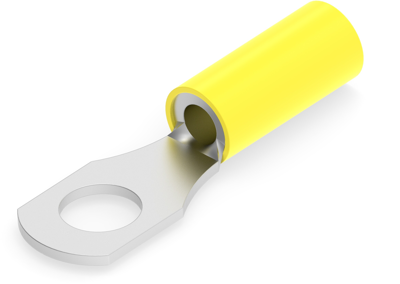

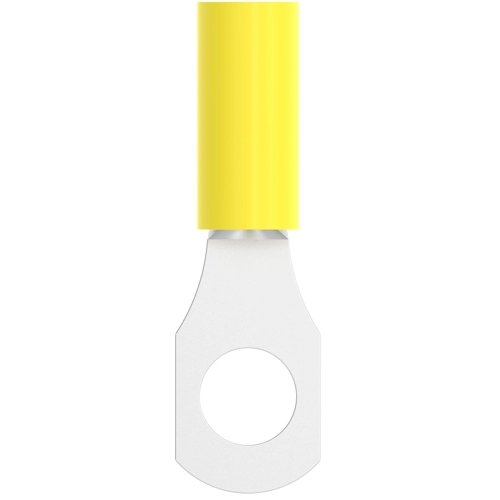

Insulated ring cable lug, 2.62-5.54 mm², AWG 12 to 10, 6.35 mm, M6, yellow, 55678-1
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7140 €
50 pcs.
0.6426 €
100 pcs.
0.5831 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 55678-1, AMP
Shape Description: RING-061, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 5.54 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: 1.02 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Colour | yellow | |
| Isolated | Yes | |
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 6.35 mm | |
| Cable cross-section | 2.62-5.54 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Material Insulation | PVC | |
| Thread size | M6 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
