55621-1 | AMP

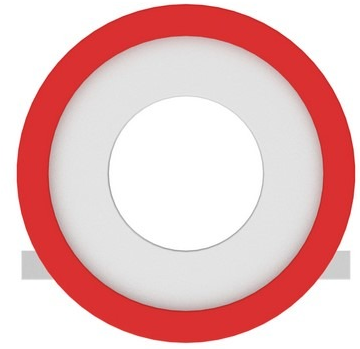

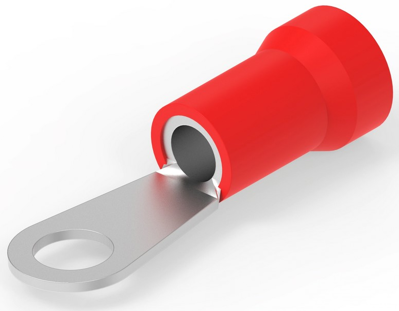

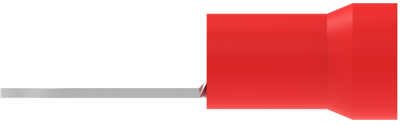

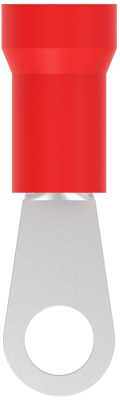

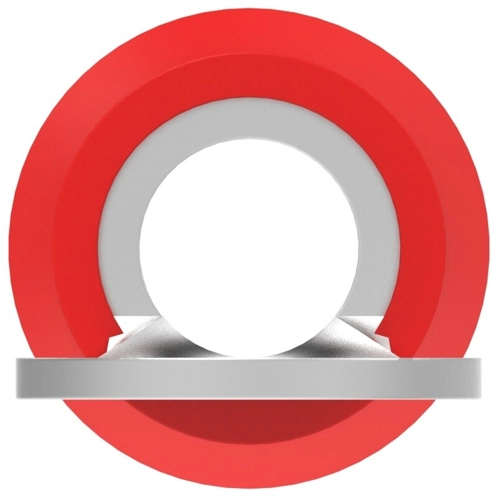

Insulated ring cable lug, 6.64-10.54 mm², AWG 8, 6.73 mm, M6, red, 55621-1
Unit Price (€ / pc.)
2.1896 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
10.95 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1896 €
10 pcs.
2.0230 €
25 pcs.
1.8921 €
50 pcs.
1.7136 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 55621-1, AMP
Shape Description: RING-044, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 8 AWG, Wire Size: 6.64 – 10.54 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .99 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 8 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 6.64-10.54 mm² | |
| Colour | red | |
| Hole diameter | 6.73 mm | |
| Material Insulation | PVC | |
| max. operating temperature | 105 °C | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
