54947-1 | AMP
Insulated ring cable lug, 6.64-10.54 mm², AWG 8, 8 mm, M8, natural, 54947-1
Unit Price (€ / pc.)
4.0103 € *
Available in 5 Days: 1,874 pcs. - if ordered today
Total Price:
4.01 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0103 €
10 pcs.
3.7247 €
25 pcs.
3.4748 €
50 pcs.
3.1535 €
*incl. VAT plus shipping costs
Subject to prior sale

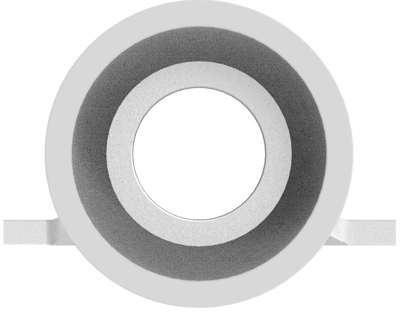

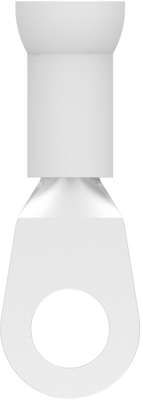

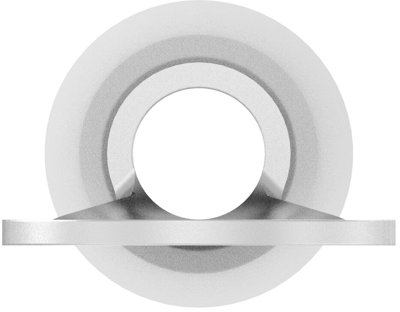

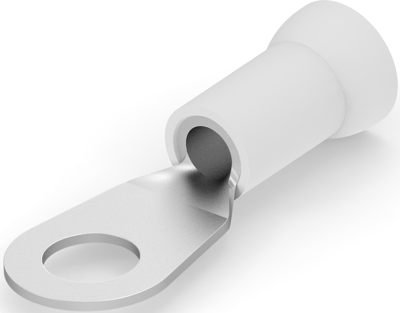

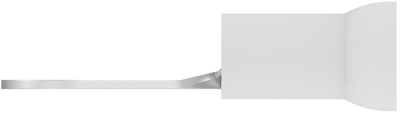

Ring cable lug, 54947-1, AMP
Ring terminal, Ring tongue, 8 AWG Wire size, 6.64-10.54 mm² Wire size, 13100-20800 CMA Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 8 | |
| Hole diameter | 8 mm | |
| Colour | natural | |
| shrinkable tubing | No | |
| Thread size | M8 | |
| Material Insulation | PVDF | |
| max. operating temperature | 150 °C | |
| Cable cross-section | 6.64-10.54 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
