54312-1 | AMP

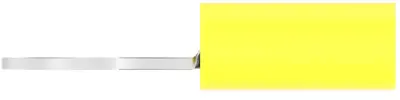

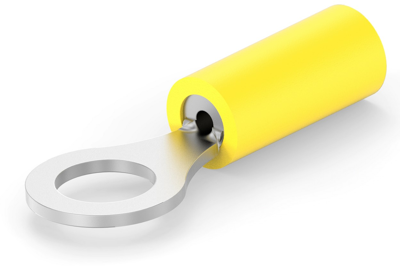

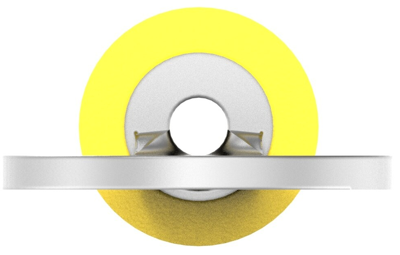

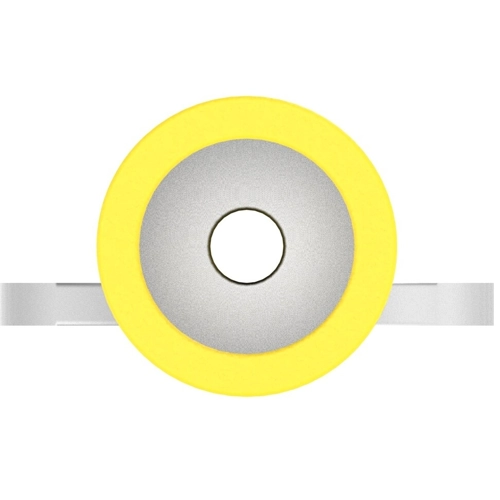

Insulated ring cable lug, 0.12-0.24 mm², AWG 26, 4.82 mm, yellow, 54312-1
Unit Price (€ / pc.)
2.0230 € *
Available in 5 Days: 1,767 pcs. - if ordered today
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0230 €
10 pcs.
1.8683 €
25 pcs.
1.7493 €
50 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 54312-1, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 26 AWG, Wire Size: 0.12 -0.24 mm², Wire Size: 238 – 475 CMA, Stud Diameter: 4.82 mm, Tongue Thickness: 0.686 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 26 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.12-0.24 mm² | |
| Colour | yellow | |
| Hole diameter | 4.82 mm | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
