53984-1 | AMP

Insulated ring cable lug, 1.04 mm², AWG 16, 6.73 mm, M6, natural, 53984-1

Order No.: 71P9849
EAN: 4099891604745
MPN:
53984-1
Series: PIDG

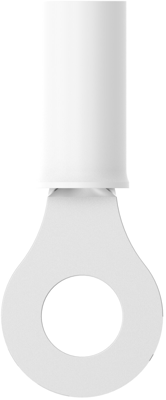

53984-1 AMP Cable Lugs Image 1

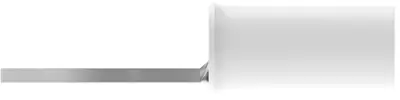

53984-1 AMP Cable Lugs Image 2

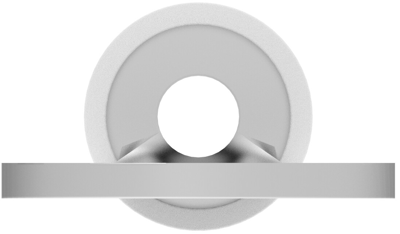

53984-1 AMP Cable Lugs Image 3

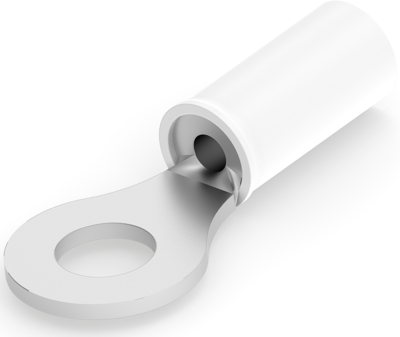

53984-1 AMP Cable Lugs Image 4
53984-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Available in 5 Days: 1,952 pcs. - if ordered today
Total Price:
232.05 € *
Price list
Quantity
Price per unit*
150 pcs.
1.5470 €
300 pcs.
1.5232 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 53984-1, AMP

Ring terminal, Ring tongue, 16 AWG Wire size, 1.04 mm² Wire size, 2050-5180 CMA Wire size, Stud size M6.

Technical specifications
Colour natural
Isolated Yes
AWG cross-section AWG 16
Hole diameter 6.73 mm
Cable cross-section 1.04 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 150 °C
shrinkable tubing No
Material Insulation PVDF
Thread size M6
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform No
