53833-1 | AMP
Uninsulated forked cable lug, 1.25-2 mm², AWG 16 to 14, 4.17 mm, M4, 53833-1
Order No.: 71P9844
EAN: 4099891604721
MPN:
53833-1
Unit Price (€ / pc.)
0.2832 € *
Available in 5 Days: 35,621 pcs. - if ordered today
Total Price:
0.28 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2832 €
10 pcs.
0.2630 €
25 pcs.
0.2463 €
50 pcs.
0.2237 €
*incl. VAT plus shipping costs
Subject to prior sale

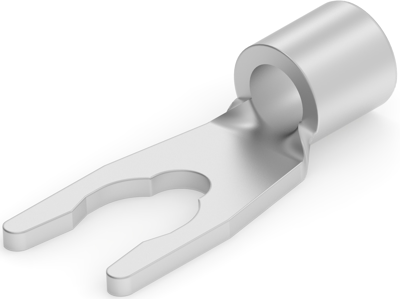

Spade cable lug, 53833-1, AMP
Spade terminal, Spring spade, 16 - 14 AWG Wire size, 1.25 - 2 mm² Wire size, 2050 - 5180 CMA Wire size, Stud size M4 / #8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 4.17 mm | |
| shrinkable tubing | No | |
| Thread size | M4 | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 1.25-2 mm² | |
| Material | phosphor bronze, tin-plated | |
| Version | forked cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
