53832-1 | AMP
Uninsulated forked cable lug, 0.3-1.42 mm², AWG 22, 4.82 mm, 53832-1
Order No.: 71P9843
EAN: 4099891604714
MPN:
53832-1
Unit Price (€ / pc.)
0.4879 € *
Available in 5 Days: 5,671 pcs. - if ordered today
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4879 €
10 pcs.
0.4522 €
25 pcs.
0.4284 €
50 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

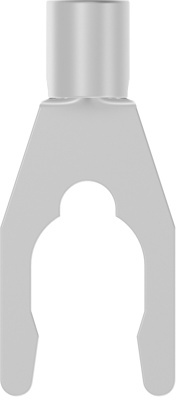

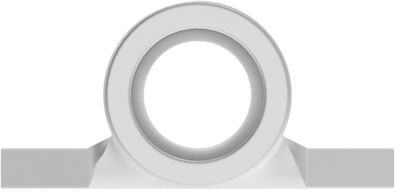

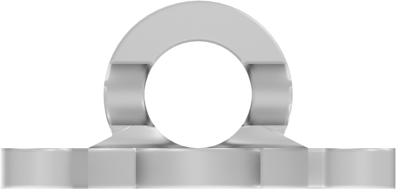

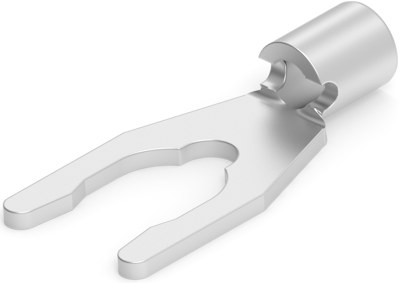

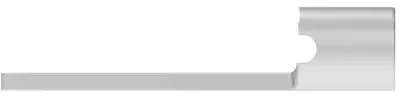

Spade cable lug, 53832-1, AMP
Spade terminal, Spring spade, 22 AWG Wire size, 0.3 - 1.42 mm² Wire size, 509 - 3260 CMA Wire size, Stud size #10.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | phosphor bronze, tin-plated | |
| AWG cross-section | AWG 22 | |
| shrinkable tubing | No | |
| Version | forked cable lug | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Hole diameter | 4.82 mm | |
| max. operating temperature | 170 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
