53642-2 | AMP

Uninsulated rectangular contact tab with hole, 14.27 mm, M12, 53642-2

Order No.: 71P9841
EAN: 4099891604707
MPN:
53642-2
Series: AMPOWER

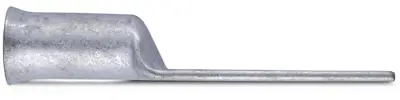

53642-2 AMP Cable Lugs Image 1

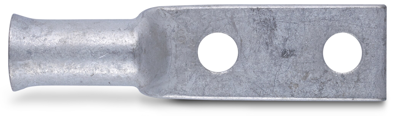

53642-2 AMP Cable Lugs Image 2

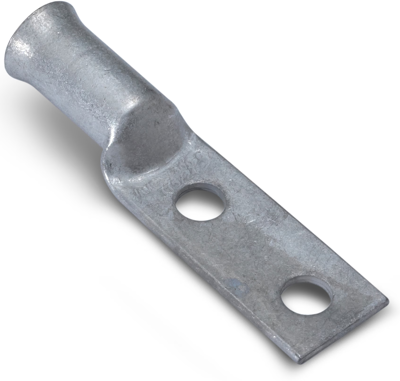

53642-2 AMP Cable Lugs Image 3
Image may differ
Unit Price (€ / pc.)
42.9352 € *
Available in 5 Days: 510 pcs. - if ordered today
Total Price:
214.68 € *
Price list
Quantity
Price per unit*
5 pcs.
42.9352 €
11 pcs.
42.1498 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular cable lug, 53642-2, AMP

Ring terminal & Spade terminal, Rectangular tongue, 450000-550000 CMA Wire size, Stud size 1/2/M12, Stud diameter 14.27 mm.

Technical specifications
Filter Property Value
max. operating temperature 105 °C
Material copper, tin-plated
Isolated No
Thread size M12
Hole diameter 14.27 mm
shrinkable tubing No
Version rectangular contact tab with hole
Logistics
Property Value
Customs tariff number 85369010
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
