53429-1 | AMP

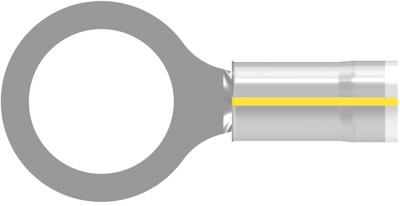

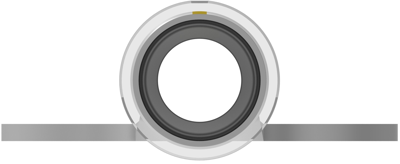

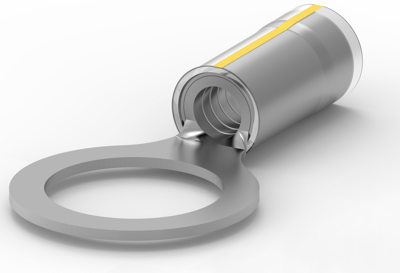

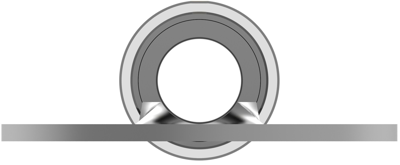

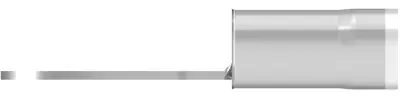

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 13 mm, M12, natural, 53429-1
Order No.: 39P3806
EAN: 4099889596144
MPN:
53429-1
Unit Price (€ / pc.)
7.1400 € *
Available in 5 Days: 871 pcs. - if ordered today
Total Price:
214.20 € *
Price list
Quantity
Price per unit*
30 pcs.
7.1400 €
65 pcs.
6.9972 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 53429-1, AMP
Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Copper, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Yellow, Ring & Spade Plating Material: Tin-Lead, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 13 mm, Tongue Thickness: 1.04 mm, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 13 mm | |
| Colour | natural | |
| Thread size | M12 | |
| Material Insulation | PVDF | |
| max. operating temperature | 150 °C | |
| Cable cross-section | 3.0-6.0 mm² | |
| Material | tin | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
