53428-1 | AMP

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 9.91 mm, natural, 53428-1

Order No.: 39P3810
EAN: 4099889596182
MPN:
53428-1
Series: PIDG

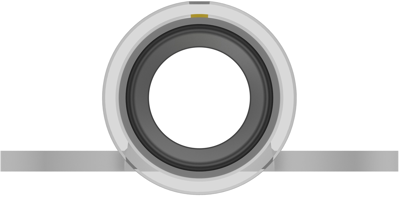

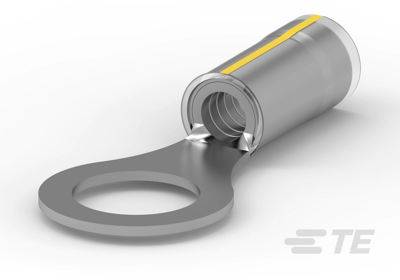

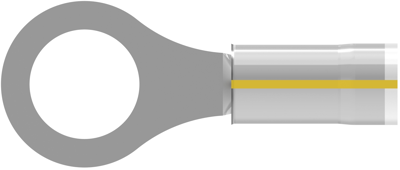

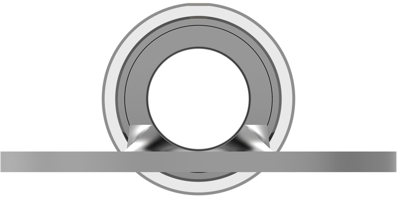

53428-1 AMP Cable Lugs Image 1
53428-1 AMP Cable Lugs Image 2
53428-1 AMP Cable Lugs Image 3
53428-1 AMP Cable Lugs Image 4
53428-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Available in 5 Days: 2,369 pcs. - if ordered today
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.5827 €
50 pcs.
1.4161 €
100 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 53428-1, AMP

Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Copper, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Yellow, Ring & Spade Plating Material: Tin-Lead, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: 1.04 mm, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece, Comment: Brazed Body

Technical specifications
Filter Property Value
Version ring cable lug
max. operating temperature 150 °C
Colour natural
Cable cross-section 3.0-6.0 mm²
AWG cross-section AWG 12 to 10
Material tin
Hole diameter 9.91 mm
Isolated Yes
Material Insulation PVDF
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
RoHS conform No
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
