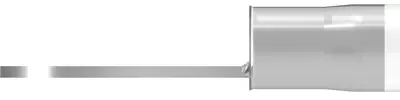

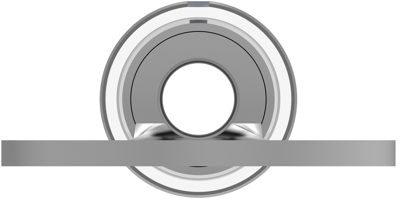

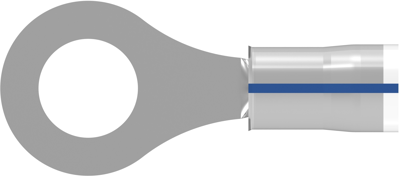

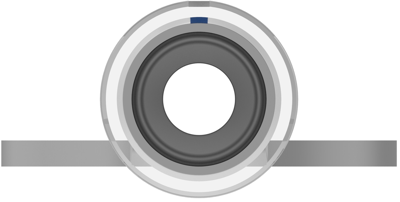

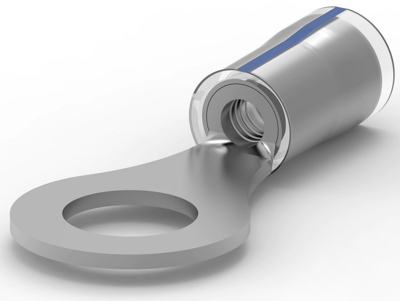

53420-1 | AMP
Insulated ring cable lug, 1.25-2.0 mm², AWG 16, 8.33 mm, M8, blue
Order No.: 39P3814
EAN: 4099889596205
MPN:
53420-1
Unit Price (€ / pc.)
0.9044 € *
Available: 0 pcs.
Available in 5 Days: 10,163 pcs.
Leadtime: 1 Week **
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
95 pcs.
0.9044 €
500 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 53420-1, AMP
Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Regular Wire, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Natural, Ring & Spade Plating Material: Tin-Lead, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .84 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 | |
| Colour | blue | |
| Thread size | M8 | |
| Material Insulation | PVDF | |
| Isolated | Yes | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 8.33 mm | |
| Material | tin | |
| max. operating temperature | 150 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
