53418-1 | AMP

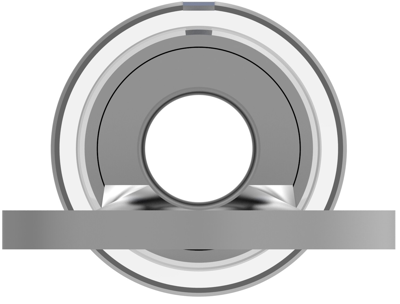

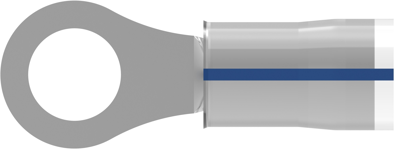

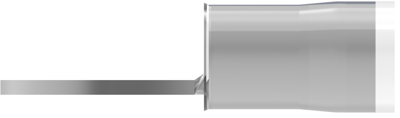

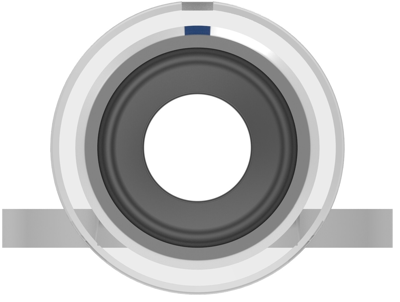

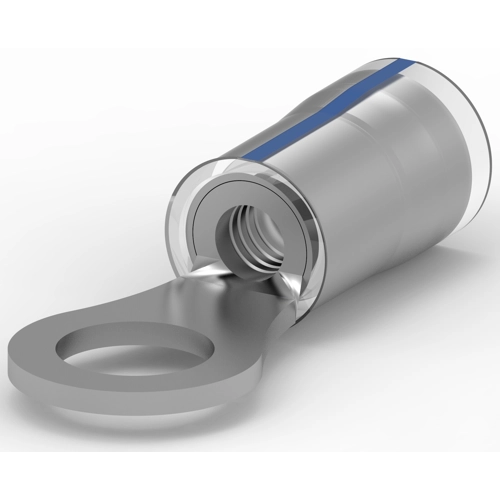

Insulated ring cable lug, 1.25-2.0 mm², AWG 16, 5 mm, natural, 53418-1
Unit Price (€ / pc.)
1.2971 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
10 pcs.
1.1781 €
50 pcs.
1.0591 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 53418-1, AMP
Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Copper, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Natural, Ring & Spade Plating Material: Tin-Lead, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Colour | natural | |
| Isolated | Yes | |
| AWG cross-section | AWG 16 | |
| Hole diameter | 5 mm | |
| Cable cross-section | 1.25-2.0 mm² | |
| Version | ring cable lug | |
| Material | tin | |
| max. operating temperature | 150 °C | |
| Material Insulation | PVDF |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
