53408-1 | AMP

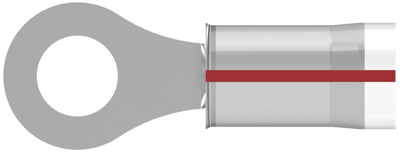

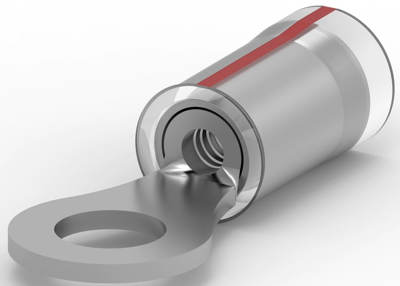

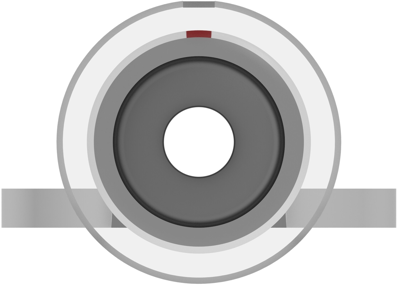

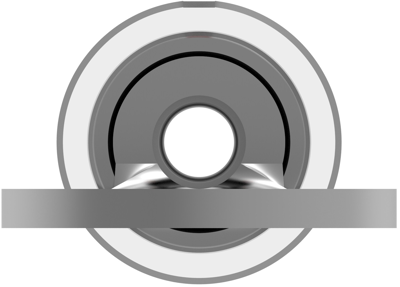

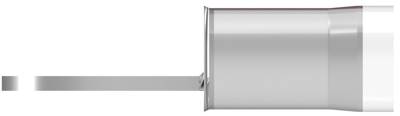

Insulated ring cable lug, 0.3-1.42 mm², AWG 22, 4.34 mm, M4, natural, 53408-1
Unit Price (€ / pc.)
1.3566 € *
Available in 5 Days: 21,691 pcs. - if ordered today
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3566 €
10 pcs.
1.2614 €
25 pcs.
1.1662 €
50 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale
Rings and Spades, 53408-1, AMP
Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Copper, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Natural, Ring & Spade Plating Material: Tin-Lead, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | tin | |
| AWG cross-section | AWG 22 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Colour | natural | |
| Hole diameter | 4.34 mm | |
| Material Insulation | PVDF | |
| max. operating temperature | 150 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
