53401-1 | AMP

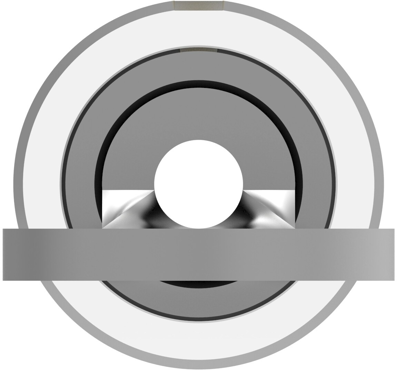

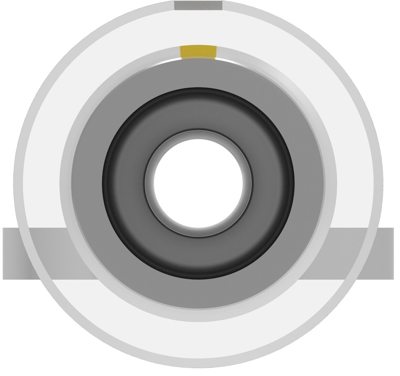

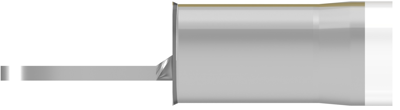

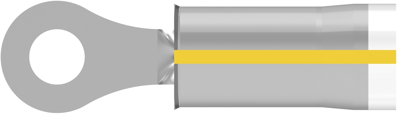

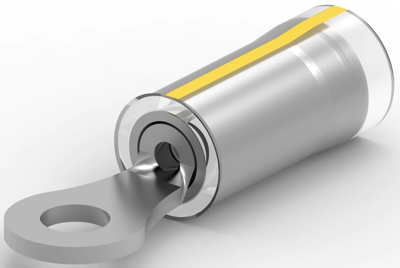

Insulated ring cable lug, 0.2-0.24 mm², AWG 26, 3.02 mm, M2.5, natural, 53401-1
Unit Price (€ / pc.)
2.3086 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
11.54 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3086 €
10 pcs.
2.1420 €
25 pcs.
1.9873 €
50 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale
Rings and Spades, 53401-1, AMP
Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Ring & Spade Wire/Cable Type: Copper, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Natural, Ring & Spade Plating Material: Tin-Lead, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 26 AWG, Wire Size: .12 – .24 mm², Wire Size: 202 – 509 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .69 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | tin | |
| AWG cross-section | AWG 26 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.2-0.24 mm² | |
| Colour | natural | |
| Hole diameter | 3.02 mm | |
| Material Insulation | PVDF | |
| max. operating temperature | 150 °C | |
| Thread size | M2.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| Substance description | Lead |
