53247-1 | AMP

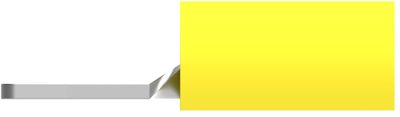

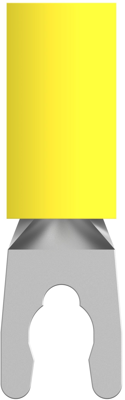

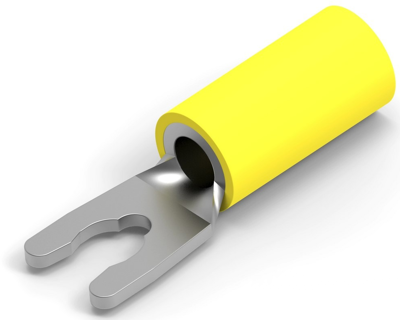

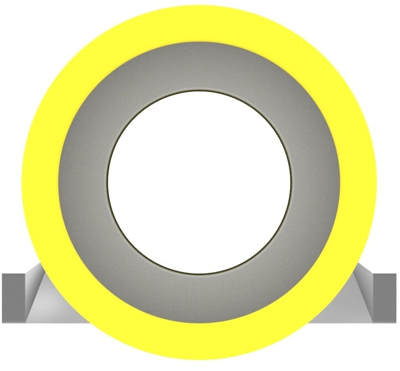

Insulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, M4, yellow, 53247-1
Unit Price (€ / pc.)
1.0710 € *
Standard delivery time from the manufacturer is: 41 Weeks
Total Price:
5.35 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0710 €
10 pcs.
0.9877 €
25 pcs.
0.9282 €
50 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale
Spring spade terminal, 53247-1, AMP
Spring spade terminal, Wire size: 3 - 6 mm², Barrel type: closed, Wire size: 12 - 10 AWG, Stud size: 8, M4, Stud diameter: 4.17 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | yellow | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 3.0-6.0 mm² | |
| Version | forked cable lug | |
| Material | tin | |
| Material Insulation | PVC | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
