53244-4 | AMP
Insulated forked cable lug, 1.25-2.0 mm², AWG 16, M4, blue, 53244-4
Order No.: 39P4001
EAN: 4099889597417
MPN:
53244-4
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 41 Weeks

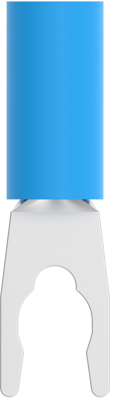

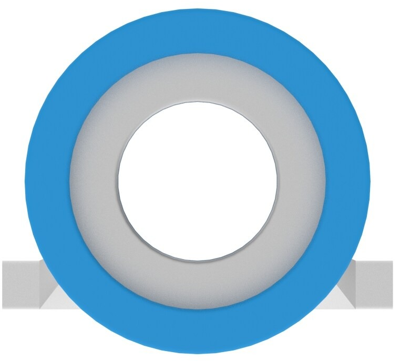

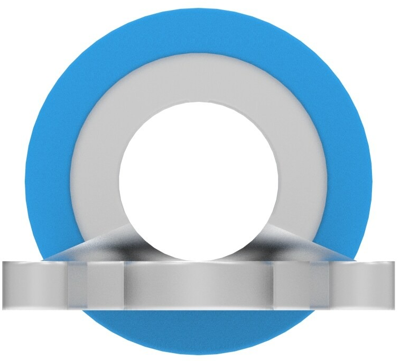

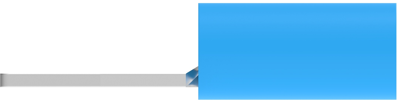

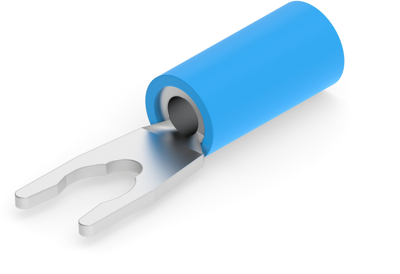

Fork cable lug, 53244-4, AMP
Shape Description: SPADE-029, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Stripe Color: Blue, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Colour | blue | |
| Thread size | M4 | |
| Material Insulation | PVC | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | tin | |
| Version | forked cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
