53241-1 | AMP

Insulated forked cable lug, 0.3-1.42 mm², AWG 22, M4, red, 53241-1

Order No.: 39P4095
EAN: 4099889598247
MPN:
53241-1
Series: PLASTI-GRIP

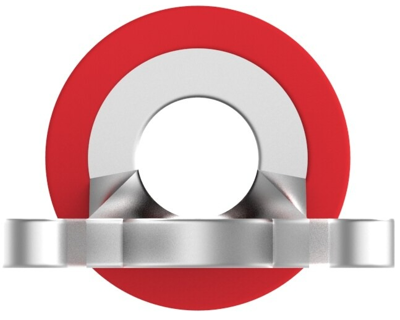

53241-1 AMP Cable Lugs Image 1

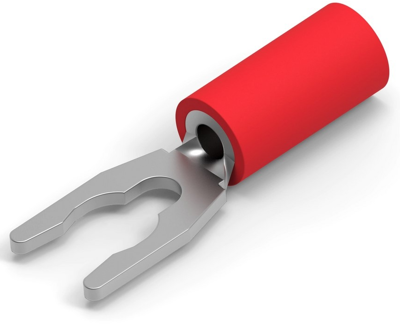

53241-1 AMP Cable Lugs Image 2

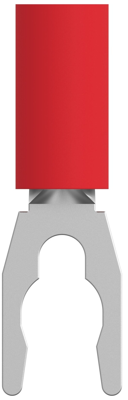

53241-1 AMP Cable Lugs Image 3

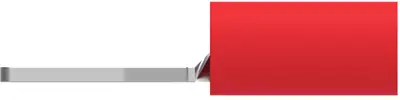

53241-1 AMP Cable Lugs Image 4

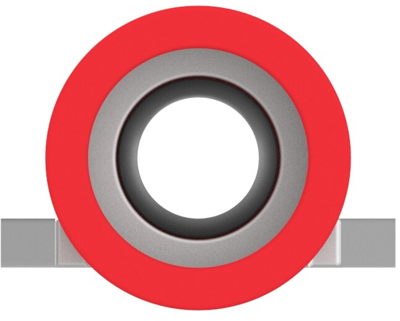

53241-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
4,760.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
10000 pcs.
0.4760 €

Fork cable lug, 53241-1, AMP

Shape Description: SPADE-029, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 1000 V,600 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version forked cable lug
max. operating temperature 105 °C
Colour red
Cable cross-section 0.3-1.42 mm²
AWG cross-section AWG 22
Material tin
Isolated Yes
Material Insulation PVC
Thread size M4
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
