53073 | AMP
Insulated ring cable lug, 0.12-0.24 mm², AWG 26 to 24, 3.51 mm, M3.5, yellow, 53073
Unit Price (€ / pc.)
1.0472 € *
Available in 5 Days: 517 pcs. - if ordered today
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.9758 €
25 pcs.
0.9163 €
50 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

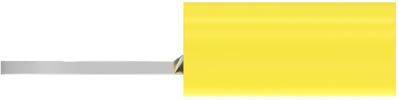

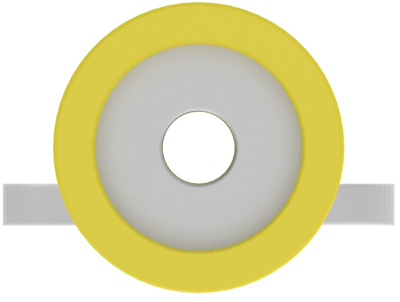

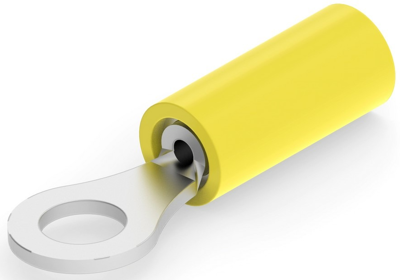

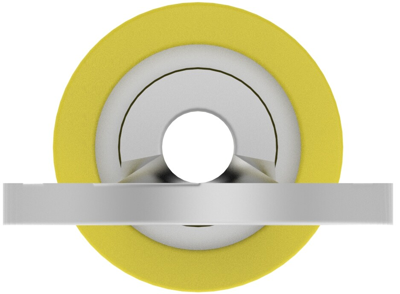

Ring tongue terminal, 53073, AMP
Ring tongue terminal, Wire size: 26 - 24 AWG, Wire size: 0.12 - 0.24 mm², Wire size: 202 - 509 CMA, Stud size: 5, M3.5, Body style: PIDG
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 24 | |
| Hole diameter | 3.51 mm | |
| Colour | yellow | |
| Thread size | M3.5 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.12-0.24 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
