53054 | AMP

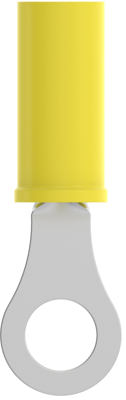

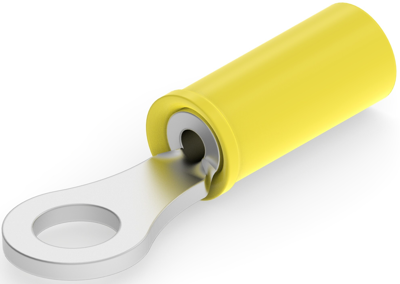

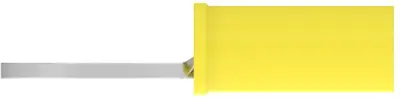

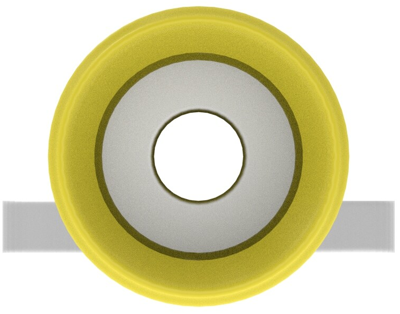

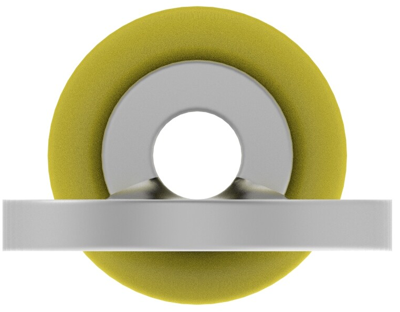

Insulated ring cable lug, 0.2-0.24 mm², AWG 24, 2.84 mm, M2.5, yellow, 53054
Unit Price (€ / pc.)
7.5922 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
7.59 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5922 €
10 pcs.
7.0567 €
25 pcs.
6.5807 €
50 pcs.
5.9857 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 53054, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 24 AWG, Wire Size: .2 – .24 mm², Wire Size: 475 CMA, Stud Diameter: 2.84 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 24 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.2-0.24 mm² | |
| Colour | yellow | |
| Hole diameter | 2.84 mm | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Thread size | M2.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
