53003-1 | AMP

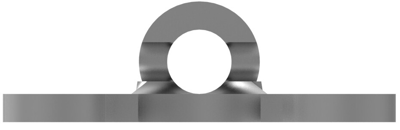

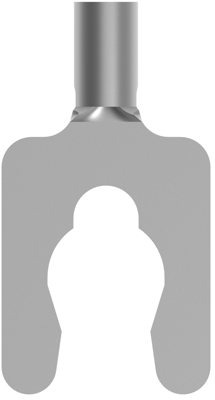

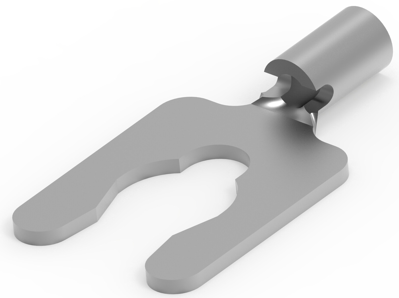

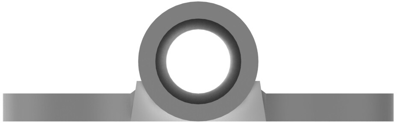

Uninsulated forked cable lug, 0.12-0.4 mm², AWG 26 to 22, M3.5, metal, 53003-1
Order No.: 39P8342
EAN: 4099889600926
MPN:
53003-1
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
10 pcs.
0.3927 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug, 53003-1, AMP
Shape Description: SPADE-030, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 3.51 mm, Tongue Thickness: .457 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | phosphor bronze, tin-plated | |
| AWG cross-section | AWG 26 to 22 | |
| Version | forked cable lug | |
| Isolated | No | |
| Cable cross-section | 0.12-0.4 mm² | |
| Colour | metal | |
| max. operating temperature | 170 °C | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
