52962 | AMP

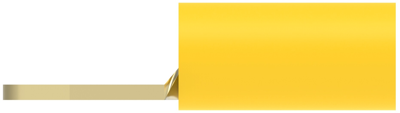

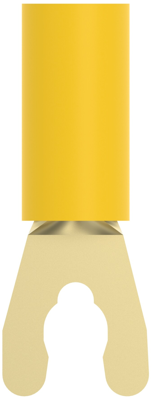

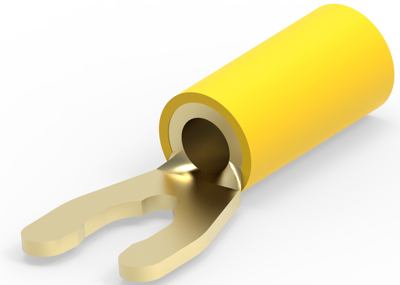

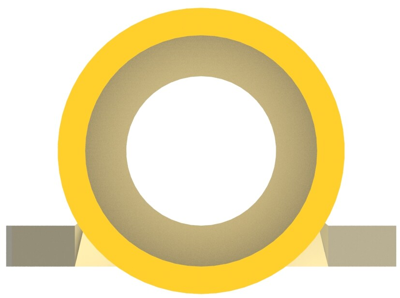

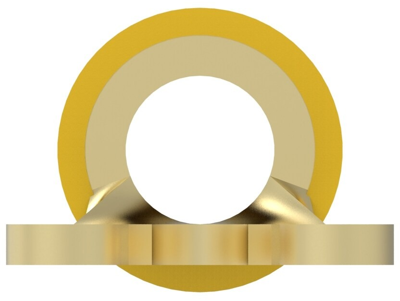

Insulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, M4, yellow, 52962
Unit Price (€ / pc.)
0.9044 € *
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9044 €
10 pcs.
0.8330 €
25 pcs.
0.7854 €
50 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug, 52962, AMP
Shape Description: SPADE-029, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Brass,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: 1.07 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | yellow | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 3.0-6.0 mm² | |
| Version | forked cable lug | |
| Material | brass, tin-plated | |
| Material Insulation | vinyl | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
