52935 | AMP

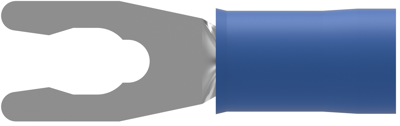

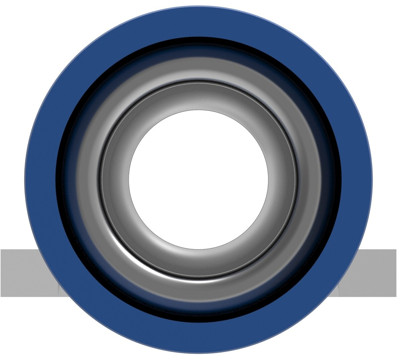

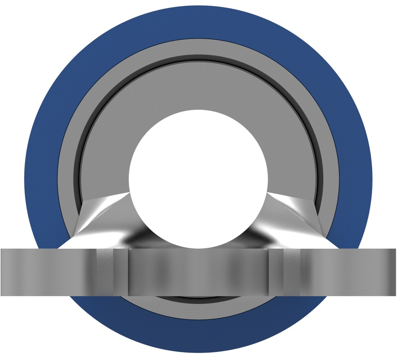

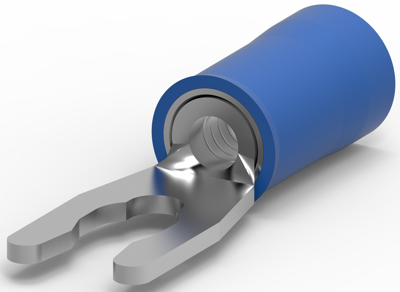

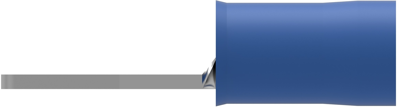

Insulated forked cable lug, 1.25-2.0 mm², AWG 16 to 14, M3.5, blue, 52935
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4165 €
10 pcs.
0.3808 €
25 pcs.
0.3570 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug, 52935, AMP
Shape Description: SPADE-028, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Blue, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.56 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | phosphor bronze, tin-plated | |
| AWG cross-section | AWG 16 to 14 | |
| Version | forked cable lug | |
| Isolated | Yes | |
| Cable cross-section | 1.25-2.0 mm² | |
| Colour | blue | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
