52927-1 | AMP

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, M2.5, red, 52927-1

Order No.: 39P3272
EAN: 4099889592023
MPN:
52927-1
Series: PIDG

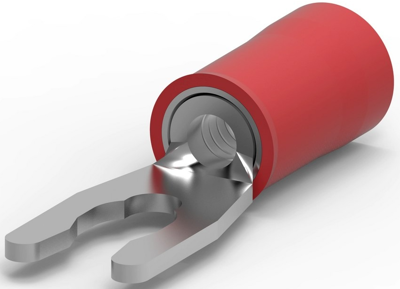

52927-1 AMP Cable Lugs Image 1

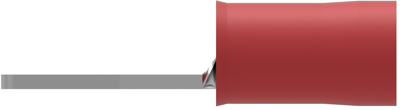

52927-1 AMP Cable Lugs Image 2

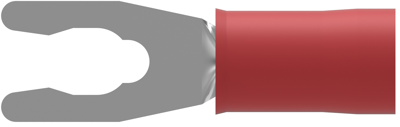

52927-1 AMP Cable Lugs Image 3

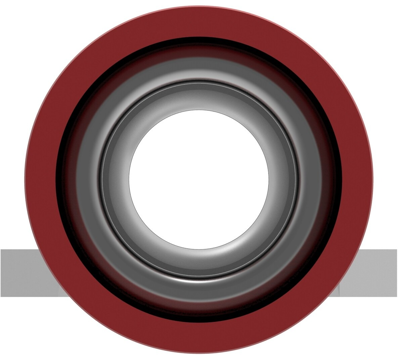

52927-1 AMP Cable Lugs Image 4

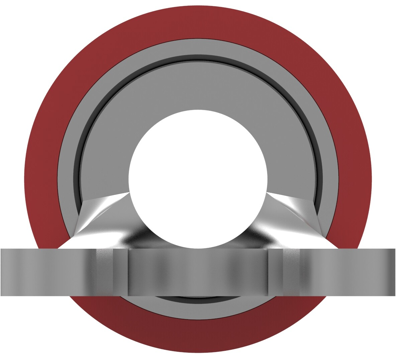

52927-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.8806 € *
Available in 5 Days: 11,874 pcs. - if ordered today
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8806 €
10 pcs.
0.8211 €
25 pcs.
0.7616 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

Fork cable lug, 52927-1, AMP

Shape Description: SPADE-028, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Red, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 2.84 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted

Technical specifications
Filter Property Value
Material phosphor bronze, tin-plated
AWG cross-section AWG 22 to 16
max. operating temperature 105 °C
Cable cross-section 0.3-1.42 mm²
Thread size M2.5
Isolated Yes
Version forked cable lug
Colour red
Material Insulation PA
Logistics
Property Value
Customs tariff number 85369095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
